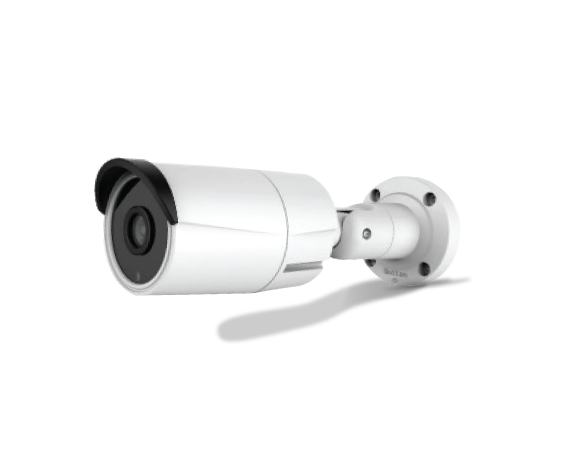

Videopark AHD Outdoor Bullet Waterproof IR Camera
VP-HDA-QSE2120-AP
AHD Outdoor Bullet Waterproof IR Camera
- 1/4" 1.2Megapixel CMOS Sensor
- Support 25fps@720P
- 2pcs IR Array Lights,Max IR View Distance 30M
- 3.6mm Fix Len Dome Camera
- AWB, 2D DNR, BLC, DWDR
- High speed, long distance real-time transmission
| Model | VP-HDA-QSE2120-AP |
| Image Sensor | 1/4" 1.2MP CMOS Sensor |
| Image / TV System | PAL |
| Effective Pixels | 1280(H) × 720(V) |
| Mini. Illumination | 0.01Lux@?F1.2?AGC ON??0 Lux with IR |
| Electronic Shutter | 1/25s?1/100,000s |
| Video standard | AHD standard definition |
| Video Frame Rate | 1280×720@25 fps |
| LED & IR Distance | 2pcs IR Array Lights,Max IR View Distance 30M |
| Day & Night | ICR |
| Exposure Mode | Auto/BLC |
| White Balance | Auto White Balance (AWB) |
| Noise Reduction / WDR | 2D-DNR, DWDR |
| Lens | 3.6mm Fix Len |
| Video Output | 1-channel BNC AHD output, Support switch to analog output |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Protection Grade | IP 66 |
| Power Supply | DC 12V±10%, 2W |
| Operating Temperature | -10°C to +50°C, RH 80% Max |
| Operation Humidity | 10% - 90% |
| Power Supply | 3W MAX |
| Storage temperature | -20°C to +60°C, RH 90% Max |
| Dimension | L187.34*W63.93*H64 mm |
| Weight(net) | 450 g |
