Code

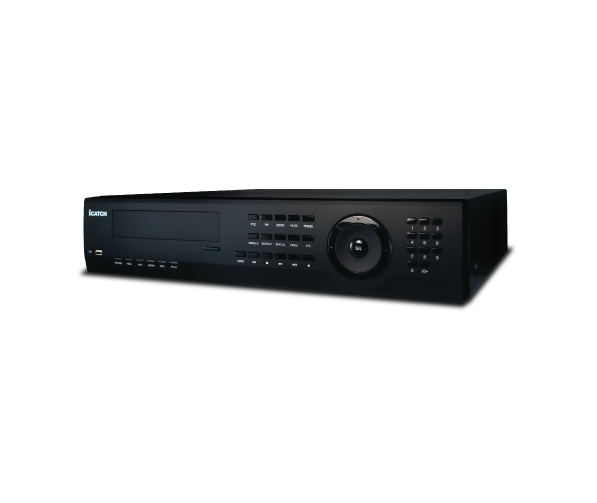

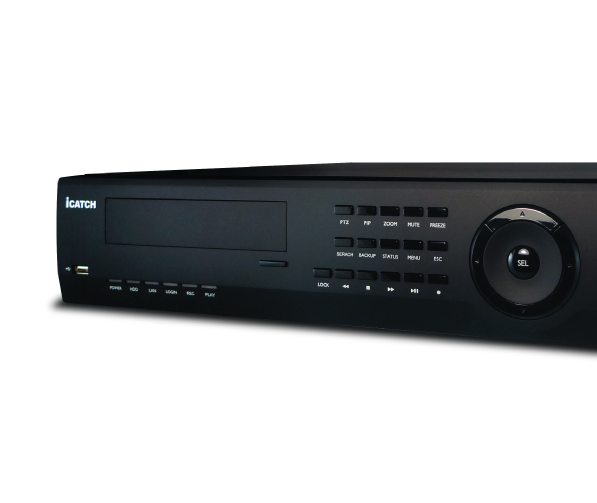

RMH-828AU-B

Video

Input

TVI: 1080P @ 30/25 fps, 720P @ 60/50 fps, 720P @ 30/25 fps
AHD: 1080P @ 30/25 fps, 720P @ 60/50 fps, 720P @ 30/25 fps
960H / D1

Output

1 HDMI with Audio and 1 VGA ( Max. 1920x1080)
1 Main BNC

Audio

Input

8 RCA

Output

2 RCA

System

Operating System

Embedded Linux OS

SATA Devices

Max. 4 x SATA Devices
(HDDx3+eSATAx1, HDDx2+Optical Device x1+eSATAx1)

External HDD

YES ( eSATA )

Sensor In (NO, NC)
Relay out

Sensor-in x 8
Relay-out x 2

Serial Interface

RS-485

USB

USB 3.0 x1, USB2.0 X2

Dimension ( mm )

430(w)x55(h)x293(d)

Weight ( w/o HDD/DVD±RW )

1.85 KG

Power Supply

12V 5.83A ,70W

Power Rating

Adapter 110/220V

Display

Split screen

1, 4, 8, SEQ.

Auto Channel Switching

Switching time : 1 ~ 99 sec

Mode

Zoom ( Digital x2~ x5), PIP, Auto SEQ.

Recording

Recording Rate

NTSC 1080P 120fps; 720P 240fps
PAL 1080P 100fps; 720P 200fps

Mode

Continuous, Event, Schedule

Playback

Search mode

Date/time, Event

Snapshot

YES

Network

Network Interface

10/100/1000 Ethernet

Protocol

TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP, DDNS

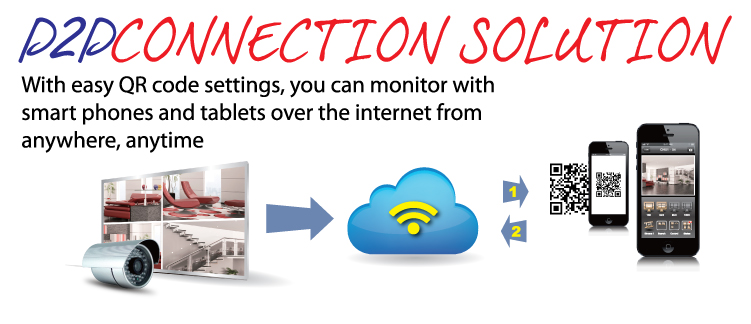

Remote Software

SoCatch App, IE Browser, iCMS Pro

Account

1 Admin + 10 Users

Mobile

Windows Phone 7.8, iPhone, iPad, Android

Backup

Interface

USB 2.0

Audio Backup

YES

Backup Type

Network, Ext. USB flash device , SATA optical DVD..etc

Alarm

Event Log

Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full)

OSD & DVR Control

GUI

32-bit True Color

Multi-Language

Supported

USB Mouse

YES

Touch Panel

Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)

System Upgrade

USB Flash Drive, iWatch DVR
