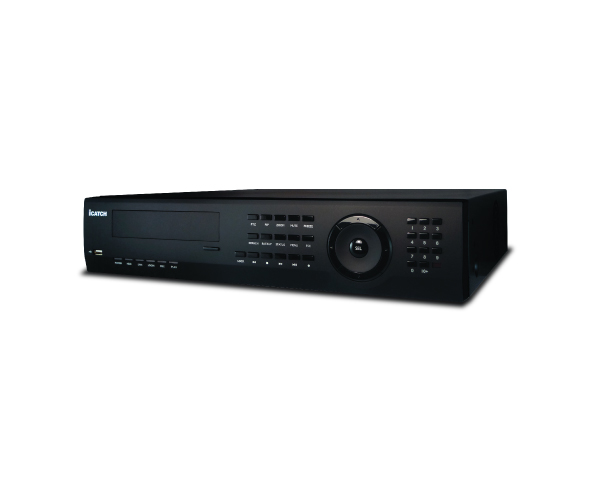

iCATCH Hybrid CCTV DVR

RXH-1625AU-B

iCATCH 5 in 1 Hybrid Dvr

Feature
Specifications

16 Channel AHD + TVI + SDI + 960H DVR

Support OmniCatch
16CH AHD 2.0, TVI 2.0 and SD-SDI universal DVR with H.264 codec
16 CH video inputs, max 1080P @ 480/400 fps (SDI, TVI & AHD); 720P @ 480/400 fps (SDI, TVI & AHD)
960H supported, max 480/400 fps
Multiple input : mix signal on same screen
Standalone Linux embedded system
Web-based management

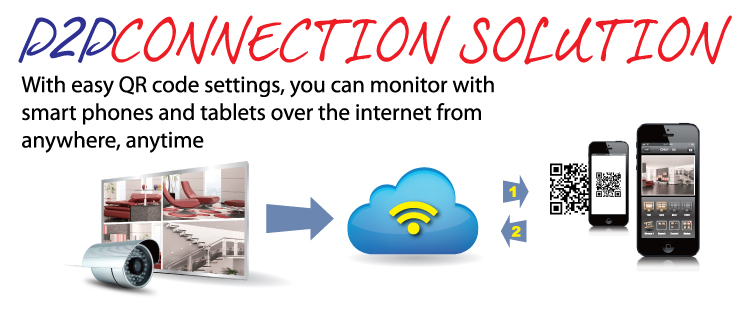

P2P remote access supported
Support iOS, Windows 7.8 and Android
Support up to 7 SATA devices, USB 3.0 x1, USB2.0 X2, RJ45(10/100/1000)
Support display output 1 HDMI with Audio and 1 VGA Max. 1920 X 1080), 1 Main BNC (CVBS)

Code		RXH-1625AU-B
Video	Input	HD-SDI: 1080P @ 30/25 fps, 720P @ 60/50 fps, 720P @ 30/25 fps TVI: 1080P @ 30/25 fps, 720P @ 60/50 fps, 720P @ 30/25 fps AHD: 1080P @ 30/25 fps, 720P @ 60/50 fps, 720P @ 30/25 fps 960H / D1
Video	Output	1 HDMI with Audio and 1 VGA ( Max. 1920x1080) 1 Main BNC
Audio	Input	8 RCA
Audio	Output	2 RCA
System	Operating System	Embedded Linux OS
	SATA Devices	Supports Max. x 7 SATA Devices (HDDx6+eSATAx1, HDDx4+Optical Devicex1+eSATAx1)
	External HDD	YES ( eSATA )
	Sensor In (NO, NC) Relay out	Alarm-in x 16 Relay-out x 4
	Serial Interface	RS-485
	USB	USB 3.0 x1, USB2.0 X2
	Dimension ( mm )	442(w)x92(h)x438(d)
	Weight ( w/o HDD/DVD±RW )	5.3 KG
	Power Supply	AC 110/220V 250W
	Power Rating	Adapter 110/220V
Display	Split screen	1, 4, 9, 13, 16,SEQ.
	Auto Channel Switching	Switching time : 1 ~ 99 sec
	Mode	Zoom ( Digital x2~ x5), PIP, Auto SEQ.
Recording	Recording Throughput	16 x 1080P@30/25fps (SDI, TVI & AHD) 16 x 720P@30/25fps (SDI, TVI & AHD) 16 x 960H@30/25fps
	Mode	Continuous, Event, Schedule
Playback	Search mode	Date/time, Event
Playback	Snapshot	YES
Network	Network Interface	10/100/1000 Ethernet
	Protocol	TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP, DDNS
	Remote Software	SoCatch App, IE Browser, iCMS Pro
	Account	1 Admin + 10 Users
	Mobile	Windows Phone 7.8, iPhone, iPad, Android
Backup	Interface	USB 2.0
	Audio Backup	YES
	Backup Type	Network, Ext. USB flash device , SATA optical DVD..etc
Alarm	Event Log	Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full)
OSD & DVR Control	GUI	32-bit True Color
	Multi-Language	Supported
	USB Mouse	YES
	Touch Panel	Touch Panel LCD Monitor (USB Interface, EETI Chipset Only)
	System Upgrade	USB Flash Drive, iWatch DVR
